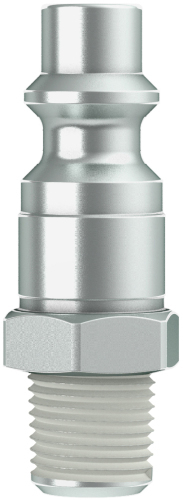

Nipple, 310 series, 1/4" BSPM
This item also available in a 2pce pack, retail friendly hang sell packaging under item code 703105152
Specifications
| Nominal flow diameter | 5.3 mm (0.2") |
| Air flow | 950 l/min (33.5 CFM) |
| Max. working pressure | 16 bar (232 PSI) |
| Min. burst pressure | 140 bar (2,030 PSI) |
| Temperature range | -20°C to +100°C (-4°F to +212°F) |
| Material nipple | Hardened zinc-plated steel |
| Standards | ISO 6150 B, A-A 59439 5.3 mm |
| Markets | Benelux, France, North America, Norway |
Flow capacity is measured at 6 bar (87 PSI inlet pressure, and pressure drop at 0.5 bar (7 PSI)
