DRF 151 - 480 fixed speed oil-injected screw compressor
Ceccato’s 150-480hp fixed speed screw compressors are designed and built to give you that essential combination of reliability and efficiency. Easy to install, use and service, you can count on the fixed speed DRF151-480 to produce the quality air that keeps your production going.
Air Cooled
| Model | Motor Size | Pressure Range | Noise Level | |
| (kW) | (Hp) | (bar) | (db(A)) | |

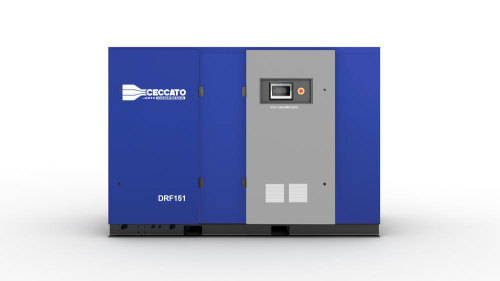

| DRF 151 | 110 | 150 | 7 - 10 | 78 |
| DRF 181 | 132 | 180 | 7 - 10 | 78 |
| DRF 220 | 160 | 220 | 7 - 10 | 78 |

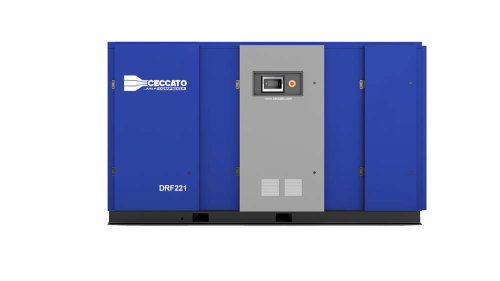

| DRF 221 | 160 | 220 | 7 - 10 | 80 |
| DRF 270 | 200 | 270 | 7 - 10 | 80 |
| DRF 340 | 250 | 340 | 0.7 - 1 | 80 |
| DRF 341 | 250 | 340 | 0.8 - 1 | 77 |
| DRF 450 | 315 | 450 | 0.8 - 1 | 78 |
| DRF 480 | 355 | 480 | 0.8 - 1 | 79 |
Water Cooled
| Model | Motor Size | Pressure Range | Noise Level | |
| (kW) | (Hp) | (bar) | (db(A)) | |
| DRF 151 | 110 | 150 | 0.7 - 1 | 75 |
| DRF 181 | 132 | 180 | 0.7 - 1 | 75 |
| DRF 220 | 160 | 220 | 0.7 - 1 | 75 |
| DRF 221 | 160 | 220 | 0.7 - 1 | 77 |
| DRF 270 | 200 | 270 | 0.7 - 1 | 77 |
| DRF 340 | 250 | 340 | 0.7 - 1 | 77 |
| DRF 341 | 250 | 340 | 0.8 - 1 | 77 |
| DRF 450 | 315 | 450 | 0.8 - 1 | 78 |
| DRF 480 | 355 | 480 | 0.8 - 1 | 79 |
