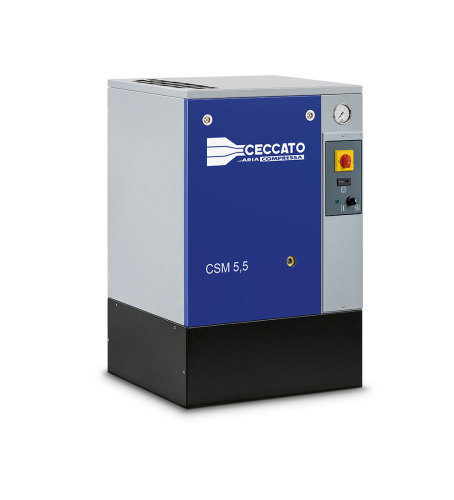

Base Mounted Version
Especially recommended for installations near the place of use or the expansion of existing systems.
The elecrocompressor's main components are: air suction filter, compressor, electric motor, oli filter and cooler, air cooling system, electrical panel for power-on and adjustment, support base and sound-proof case.

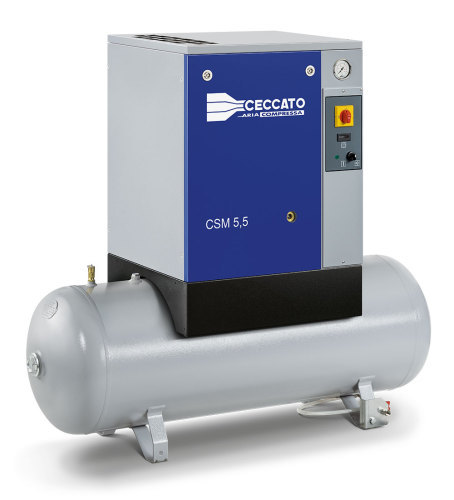

Tank Mounted Version
Particularly recommended for new or stand-alone installations where there is a need for compressed air with a low noise level.
The unit consists of an electrocompressor on a fixed, 200 or 270 litre tank.

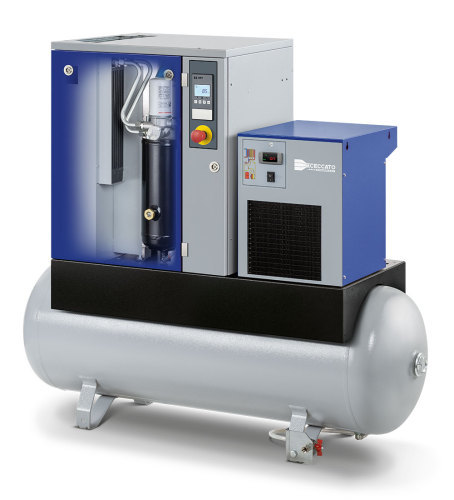

Dry Version
Especially recommended for installations with compressed air demands with low dew point.
The compression unit is made up of electrocompressor, tank and refrigerating dryer with gas R134a with indicator of the dew point and timed condensation.
CSM 3-9hp Oil-Injected Screw Compressors
The Ceccato CSM 3-9 is the ultimate workshop compressor: powerful, easy to use and always reliable. Thanks to its rotary screw technology, you get more air while enjoying lower energy costs. Better yet, you can use it all day long without cool-down periods. Of course you can tailor the CSM to your specifications and preferences. We have a 2.2 to 7.5 kW power range, both floor- and tank-mounted models, and a range of options to custom-build your CSM.
| Model | Motor Size | Pressure Range | Noise Level | |
| (kW) | (Hp) | (bar) | (db(A)) | |
| CSM 3 | 2.2 | 3 | 8 - 10 | 61 |
| CSM 4 | 3 | 4 | 8 - 10 | 61 |
| CSM 5.5 | 4 | 5.5 | 8 - 10 | 62 |
| CSM 7.5 | 5.5 | 7.5 | 8 - 10 | 66 |
| CSM 9 | 7.5 | 10 | 8 - 10 | 68 |
